For optimal performance, it is recommended to follow a star-ground layout, keep the input and output traces short and away from noise sources, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins, and the device should be operated within its recommended operating conditions.
The high input bias current of the OPA2662AU can be handled by using a low-impedance source, such as a voltage divider or a buffer amplifier, to drive the input. Additionally, the input bias current can be cancelled out by using a matched resistor network or by using a current-sensing resistor in the feedback loop.
The OPA2662AU can drive a maximum capacitive load of 100 pF, but it is recommended to limit the capacitive load to 10 pF or less to ensure stability and optimal performance.
To ensure stability and prevent oscillations, it is recommended to follow the recommended layout and PCB design guidelines, use a low-ESR decoupling capacitor, and avoid using long input and output traces. Additionally, the device should be operated within its recommended operating conditions, and the gain and phase margin should be checked to ensure stability.
The recommended power supply decoupling for the OPA2662AU is a 10 uF ceramic capacitor in parallel with a 100 nF ceramic capacitor, placed close to the power pins. This helps to filter out noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2662AU Overview

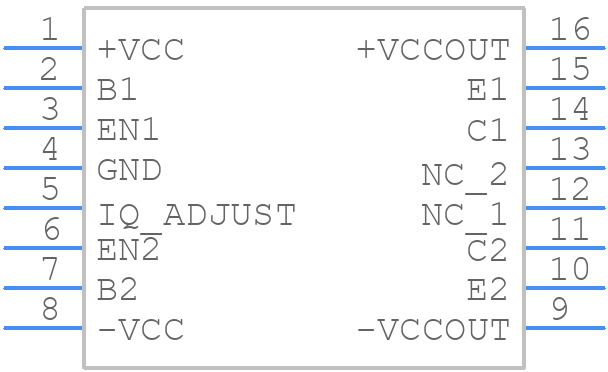

Use the download button to access the OPA2662AU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA26,
or try a keyword search, such as Operational Amplifiers
