Texas Instruments recommends a star-ground layout, with the op-amp's ground pin connected to a central ground point, and the use of bypass capacitors between the power supply pins and ground. Additionally, keeping the input and output traces short and away from each other can help reduce noise and oscillations.
The gain resistors should be chosen based on the desired gain and bandwidth of the amplifier. A higher gain requires smaller resistors, while a lower gain requires larger resistors. The datasheet provides a gain resistor calculator to help with this selection. Additionally, the resistors should be matched to within 0.1% to ensure good common-mode rejection.
The maximum power dissipation of the OPA2675RGVR is 1.4W, which is calculated based on the maximum junction temperature of 150°C and the thermal resistance of the package. The actual power dissipation will depend on the operating conditions, such as the supply voltage, output current, and ambient temperature.
Yes, the OPA2675RGVR can be used as a unity-gain buffer, but it's not the most suitable application for this device. The OPA2675RGVR is a high-speed, high-gain op-amp, and using it as a unity-gain buffer may not take full advantage of its capabilities. Additionally, the device's high gain-bandwidth product may lead to oscillations or instability in a unity-gain configuration.
The OPA2675RGVR has internal input protection diodes that can withstand input voltages up to ±20V. However, it's still recommended to add external protection circuitry, such as input resistors and diodes, to prevent damage from excessive input voltages or electrostatic discharge (ESD).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2675RGVR Overview

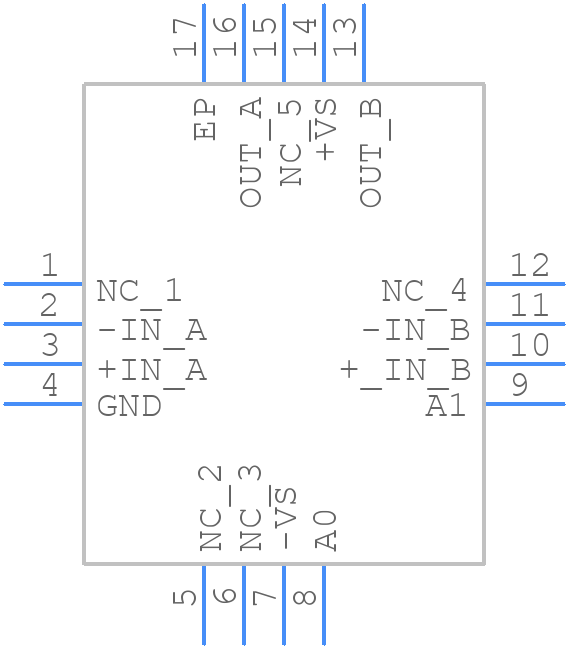

Use the download button to access the OPA2675RGVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA26,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
