Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and away from each other, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability, it's essential to follow the recommended compensation network and component values, and to keep the gain resistors close to the op-amp inputs. Additionally, the output capacitor should be chosen to ensure a stable phase margin. TI provides a stability calculator tool to help with this.
The maximum power dissipation of OPA2690I-14DR is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation is within the recommended maximum value.
Yes, OPA2690I-14DR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to follow the recommended operating conditions and derate the device's power dissipation accordingly to ensure reliable operation.
To protect OPA2690I-14DR from EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, use a low-pass filter or a shielded cable to reduce radiated emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2690I-14DR Overview

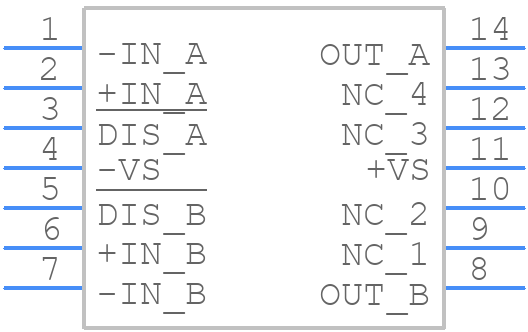

Use the download button to access the OPA2690I-14DR schematic symbol, PCB footprint, and 3D model.
