Texas Instruments recommends a layout with a solid ground plane, short traces, and minimal impedance mismatch to minimize noise and distortion. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, keep the input and output traces separate and avoid crossing them over each other.
To ensure stability in high-gain configurations, it's essential to follow the recommended compensation network and component values. Additionally, ensure that the input and output impedances are matched, and the feedback network is properly designed. You can also use the TI's SPICE model to simulate and optimize your design.
The maximum power dissipation of OPA2695IRGTR is dependent on the ambient temperature and the thermal resistance of the package. You can calculate the maximum power dissipation using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance. The maximum power dissipation is typically around 1.4W.
Yes, OPA2695IRGTR can be used in a single-supply configuration. To do so, you'll need to bias the input and output to a voltage that is within the common-mode range of the op-amp. You can use a voltage divider or a resistive network to set the bias voltage. Additionally, ensure that the input and output signals are referenced to the same voltage level.
To protect OPA2695IRGTR from ESD and overvoltage, use ESD protection diodes or TVS diodes on the input and output pins. Additionally, ensure that the input and output signals are within the recommended voltage range. You can also use a voltage limiter or a clamp circuit to prevent overvoltage conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2695IRGTR Overview

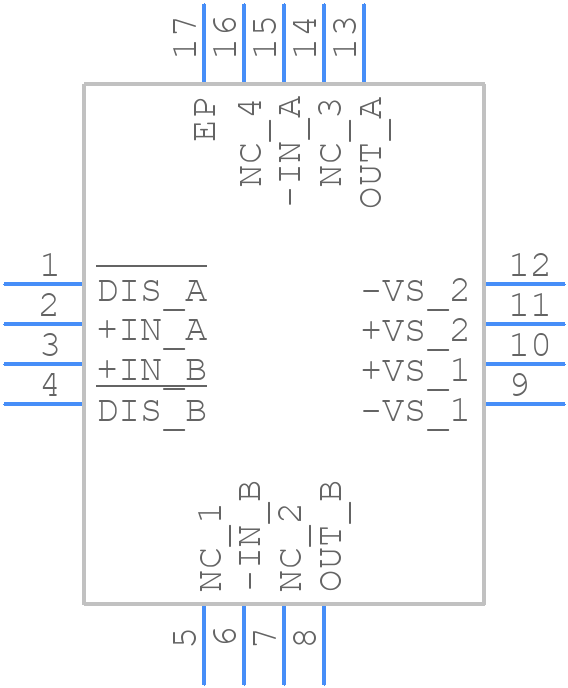

Use the download button to access the OPA2695IRGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA26,
or try a keyword search, such as Operational Amplifiers
