OPA277AIDRMR - Texas Instruments

Description: Op Amp Single Low Offset Voltage Amplifier ±18V 8-Pin VSON EP T/R

Download OPA277AIDRMR Model

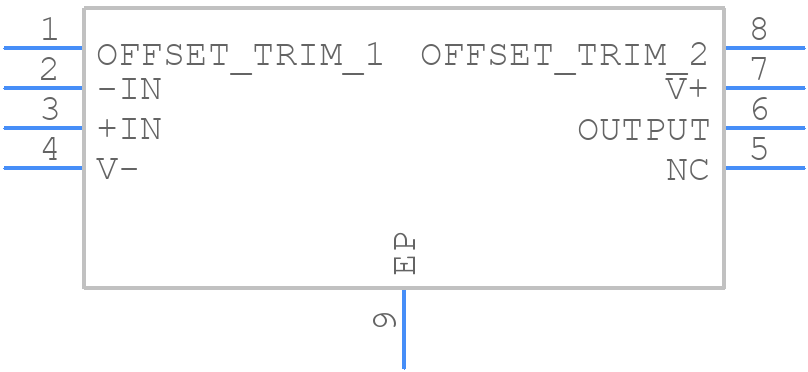

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA277AIDRMR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRM(S-PVSON-N8)
click to zoom
3D Models
OPA277AIDRMR - Texas Instruments  - 3D model - Small Outline No-lead - DRM(S-PVSON-N8)
click to zoom

OPA277AIDRMR Details

  • Manufacturer Part Number:

    OPA277AIDRMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.004 µA

  • Bias Current-Max (IIB) @25C:

    0.001 µA

  • Common-mode Reject Ratio-Min:

    130 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.001 µA

  • Input Offset Voltage-Max:

    20 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.15,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Slew Rate-Min:

    0.8 V/us

  • Slew Rate-Nom:

    0.8 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    0.825 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    1995000

  • Wideband:

    NO

  • Width:

    4 mm

OPA277AIDRMR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-ground layout, with the op-amp's ground pin connected to a central ground point, and the use of separate analog and digital grounds to minimize noise coupling. Additionally, keep the input and output traces short and away from each other to reduce capacitive coupling.
  • Choose gain resistors based on the desired gain and bandwidth requirements. Incorrect values can lead to instability, oscillations, or reduced bandwidth. Use the op-amp's gain-bandwidth product (GBP) to determine the maximum gain and bandwidth. Consult the datasheet's gain resistor selection guide for more information.
  • The maximum power dissipation of the OPA277AIDRMR is 670mW. Ensure the device doesn't overheat by providing adequate heat sinking, using a thermally conductive PCB material, and keeping the ambient temperature within the recommended operating range. Calculate the power dissipation using the formula: Pd = (Vcc x Icc) + (Vout x Iout).
  • Yes, the OPA277AIDRMR can be used as a unity-gain buffer. However, this configuration can lead to reduced bandwidth and increased noise sensitivity due to the op-amp's internal compensation capacitor. Add a small capacitor (e.g., 10pF) in parallel with the feedback resistor to improve stability and bandwidth.
  • Use shielding, filtering, and grounding techniques to protect the OPA277AIDRMR from EMI and RFI. Add a common-mode choke or ferrite bead to the input lines, and use a shielded enclosure or metal can to reduce radiated emissions. Ensure good PCB layout practices, such as keeping sensitive traces away from noisy signals and using guard rings around sensitive nodes.
