The maximum power dissipation of the OPA277U/2K5 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-22pF) between the output and the inverting input pins. This helps to compensate for the op-amp's internal capacitance and ensures stability.
To minimize noise and interference, it's recommended to follow good PCB layout practices, such as keeping the input and output traces separate, using a ground plane, and placing the op-amp close to the signal source. Additionally, use a low-ESR capacitor (e.g., 10uF) between the power supply pins to filter out noise.
The OPA277U/2K5 is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If you need to operate the op-amp in a high-temperature environment, consider using a heat sink or a thermally-enhanced package, and ensure that the maximum junction temperature (TJ) is not exceeded.
To choose the correct resistor values, use the following guidelines: R1 (feedback resistor) should be between 1kΩ and 100kΩ, and R2 (input resistor) should be between 1kΩ and 10kΩ. The gain of the amplifier is determined by the ratio of R1 to R2. A higher gain requires a higher ratio of R1 to R2.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA277U/2K5 Overview

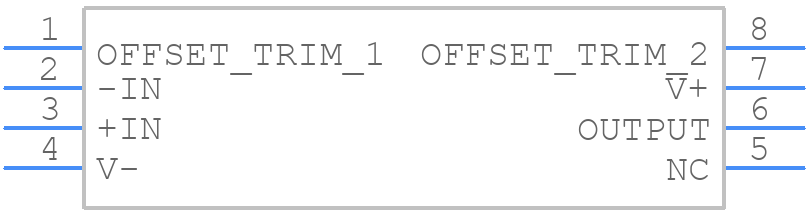

Use the download button to access the OPA277U/2K5 schematic symbol, PCB footprint, and 3D model.
