For optimal performance, it is recommended to follow a star-ground layout, keep the input and output traces short and away from noise sources, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins, and the device should be operated within its recommended operating conditions.
The OPA277UAG4 is an ESD-sensitive device, and proper handling and storage procedures should be followed to prevent damage. This includes using anti-static wrist straps, mats, and bags, and avoiding direct contact with the device pins.
The maximum power dissipation of the OPA277UAG4 is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (Tj - Ta) / θja, where Pd is the power dissipation, Tj is the junction temperature, Ta is the ambient temperature, and θja is the thermal resistance. The maximum power dissipation should not exceed 500mW.
The OPA277UAG4 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It is recommended to derate the device's power dissipation and operating conditions according to the datasheet's thermal derating curves to ensure reliable operation.
The input and output capacitors should be selected based on the application's frequency response and noise requirements. A general rule of thumb is to use capacitors with a high quality factor (Q) and a low equivalent series resistance (ESR). The datasheet provides guidelines for capacitor selection, and additional information can be found in the application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA277UAG4 Overview

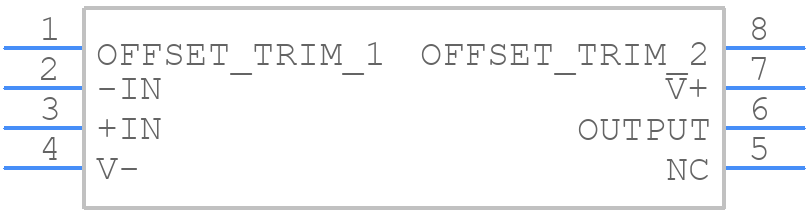

Use the download button to access the OPA277UAG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA27,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
