Texas Instruments recommends a layout that minimizes parasitic capacitance and inductance, with a solid ground plane, and keeping the input and output traces short and separate. A 4-layer PCB with a dedicated analog ground plane is also recommended.
To ensure stability in a unity-gain configuration, it's essential to add a capacitor (typically 10-100pF) between the output and the inverting input to compensate for the op-amp's internal capacitance. Additionally, ensure that the feedback network is properly terminated and that the layout is optimized for minimal parasitic capacitance.
The maximum power dissipation of OPA27GU/2K5E4 is 500mW. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation is within the recommended limit to prevent overheating.
While OPA27GU/2K5E4 is rated for operation up to 125°C, its performance may degrade at high temperatures. It's essential to consider the device's thermal characteristics, such as junction-to-ambient thermal resistance (RθJA), and ensure that the device is properly heat-sinked to maintain a safe operating temperature.
To protect OPA27GU/2K5E4 from EMI, use proper shielding, such as a metal enclosure or a shielded PCB, and ensure that the device is properly grounded. Additionally, use bypass capacitors to filter out high-frequency noise, and consider using EMI filters or common-mode chokes in the signal path.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA27GU/2K5E4 Overview

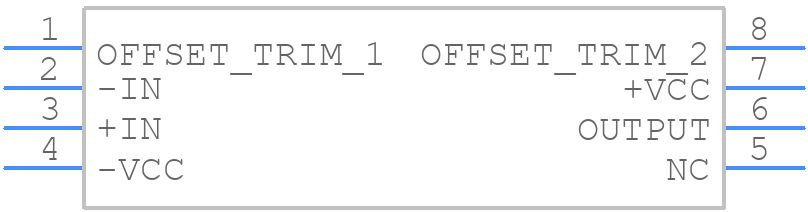

Use the download button to access the OPA27GU/2K5E4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA27,
or try a keyword search, such as Operational Amplifiers
