The maximum power dissipation of the OPA2990SIDGSR is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
To ensure stability, it's recommended to use a compensation capacitor (CC) between the output and the inverting input pins. The value of CC depends on the gain and bandwidth requirements of the application. A good starting point is to use a 10pF to 22pF capacitor.
To minimize noise and EMI, it's recommended to use a star-ground configuration, keep the input and output traces short and away from each other, and use a ground plane to shield the device. Additionally, decoupling capacitors should be placed close to the device's power pins.
While the OPA2990SIDGSR can be used as a comparator, it's not the most suitable device for this application. The device is optimized for linear operation, and its output stage is not designed for high-speed switching. Texas Instruments recommends using a dedicated comparator device, such as the LM339 or LM2901, for comparator applications.
The OPA2990SIDGSR has internal ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, or ESD bag, and avoiding direct contact with the device's pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2990SIDGSR Overview

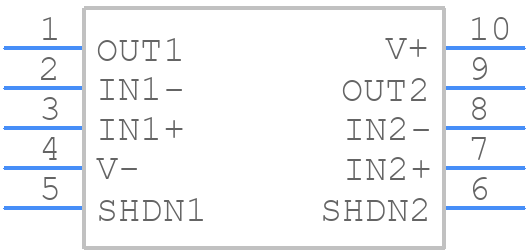

Use the download button to access the OPA2990SIDGSR schematic symbol, PCB footprint, and 3D model.
