Texas Instruments recommends a star-ground layout, where the analog and digital grounds are separated and connected at a single point. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference (EMI).
To minimize the effects of input bias current, use a low-impedance source or add a voltage follower stage before the OPA356AID. You can also use a bias current cancellation technique, such as adding a resistor in series with the input signal to compensate for the input bias current.
The OPA356AID can drive up to 1nF of capacitive load, but it's recommended to keep the load capacitance below 100pF to ensure stability. Excessive capacitive loading can cause oscillations or ringing, so it's essential to consider the load capacitance when designing the circuit.
The OPA356AID has a built-in input overvoltage protection (OVP) circuit that prevents the input signal from exceeding the supply voltage. When the input signal exceeds the supply voltage, the OVP circuit clamps the input voltage to the supply voltage, protecting the device from damage.
To prevent latch-up or damage, Texas Instruments recommends powering up the OPA356AID in the following sequence: VCC, then VIN, and finally the input signal. This sequence ensures that the device is properly biased and configured before the input signal is applied.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
OPA356AID Overview

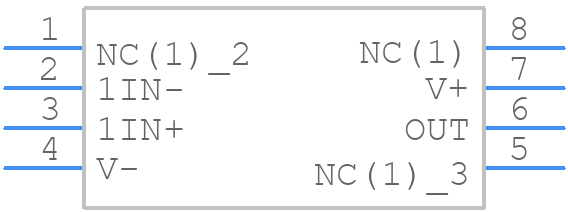

Use the download button to access the OPA356AID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA35,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
