Texas Instruments provides a recommended PCB layout in the OPA3691 datasheet, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The OPA3691IDBQTG4 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to protect the device from external ESD events.
The maximum power dissipation of OPA3691IDBQTG4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to perform thermal analysis and consider heat sinking or other thermal management techniques to ensure reliable operation.
The OPA3691IDBQTG4 is specified to operate from -40°C to 125°C, but the device's performance and reliability may degrade at higher temperatures. It's recommended to consult the datasheet and perform thermal analysis to ensure the device can operate reliably in the target environment.
The selection of input and output capacitors depends on the specific application and frequency range of interest. As a general guideline, use low-ESR capacitors with a value of 10nF to 100nF for input and output decoupling. Consult the datasheet and application notes for more detailed guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA3691IDBQTG4 Overview

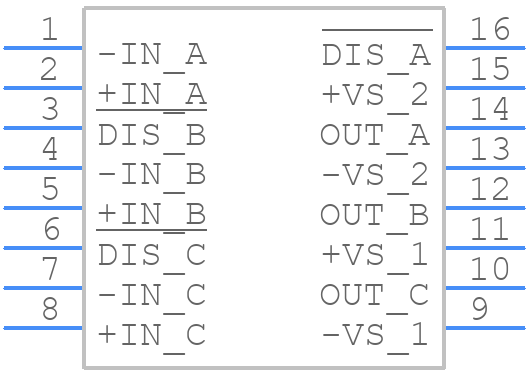

Use the download button to access the OPA3691IDBQTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA36,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
