Texas Instruments provides a recommended PCB layout in the OPA3692ID datasheet, which includes keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a thermal pad on the bottom of the package to improve heat dissipation.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements of your application. Texas Instruments provides a gain resistor calculator tool on their website, which can help you select the optimal resistors based on your specific requirements. Additionally, the OPA3692ID datasheet provides guidelines for selecting gain resistors and calculating the gain bandwidth product.
The maximum power dissipation of OPA3692ID is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a power dissipation calculation formula, which takes into account the supply voltage, output current, and thermal resistance. It's recommended to keep the junction temperature below 150°C to ensure reliable operation.
OPA3692ID is specified to operate from -40°C to 125°C, but the device's performance and reliability may degrade at higher temperatures. The datasheet provides temperature-dependent characteristics, such as offset voltage and gain bandwidth product, which can help you determine the device's performance at elevated temperatures. It's recommended to derate the device's power dissipation and ensure proper heat sinking to prevent thermal runaway.
To protect OPA3692ID from EMI and RFI, it's recommended to use proper shielding, grounding, and filtering techniques. The datasheet provides guidelines for reducing EMI and RFI, including using a shielded enclosure, keeping the device away from noise sources, and using ferrite beads or common-mode chokes to filter out high-frequency noise.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
OPA3692ID Overview

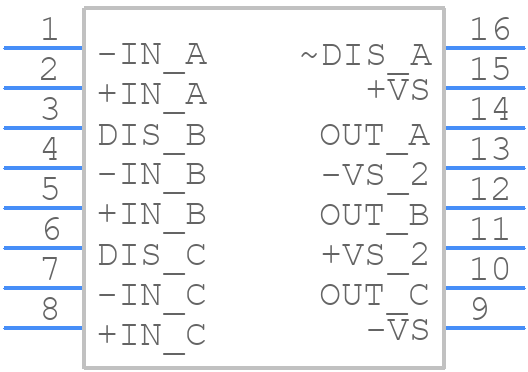

Use the download button to access the OPA3692ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA36,
or try a keyword search, such as Buffer Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
