Texas Instruments provides a recommended PCB layout in the OPA3692 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane and a separate analog ground plane to minimize noise and interference.
To ensure stability, follow the recommended compensation network and component values provided in the datasheet. Additionally, ensure that the circuit layout is well-designed, with minimal parasitic capacitance and inductance. Also, consider using a phase margin analyzer tool to verify the stability of your circuit.
The maximum power dissipation of OPA3692IDBQR is dependent on the ambient temperature and the package thermal resistance. The datasheet provides a formula to calculate the maximum power dissipation, which is PDMAX = (TJMAX - TA) / θJA, where TJMAX is the maximum junction temperature, TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance.
The OPA3692IDBQR is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. TI recommends derating the device's power dissipation and ensuring proper thermal management to prevent overheating. Additionally, consider using a thermally enhanced package or a heat sink to reduce the junction temperature.
The datasheet provides guidelines for selecting input and output capacitors, including the recommended capacitor values and types. In general, choose capacitors with low equivalent series resistance (ESR) and high ripple current ratings to minimize noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA3692IDBQR Overview

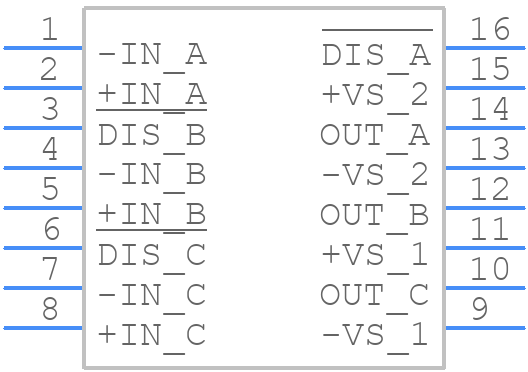

Use the download button to access the OPA3692IDBQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA36,
or try a keyword search, such as Buffer Amplifiers
