Texas Instruments recommends a layout that minimizes parasitic capacitance and inductance, keeps the input and output traces short and separate, and uses a solid ground plane. A 4-layer PCB with a dedicated analog ground layer is recommended. See the TI application note 'AN-1169: PCB Layout for Switching Regulators and Op Amps' for more details.
The output capacitor should be chosen based on the desired closed-loop bandwidth and stability. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF. The capacitor should also have a low equivalent series resistance (ESR) to minimize ringing and oscillation. See the TI application note 'AN-114: Op Amp Output Capacitor Selection' for more details.
The maximum power dissipation of the OPA37GPG4 is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout). Where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation is within the recommended maximum to prevent overheating and damage to the device.
Yes, the OPA37GPG4 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to prevent loading the source, and the output impedance is low enough to drive the load. Additionally, the op-amp should be compensated for unity-gain stability by adding a capacitor in parallel with the feedback resistor. See the TI application note 'AN-31: Unity-Gain Buffer Amplifier' for more details.
To protect the OPA37GPG4 from ESD, handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat. Ensure that the PCB is designed with ESD protection in mind, including the use of ESD-protection diodes and resistors. See the TI application note 'AN-1006: ESD Protection for Op Amps' for more details.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA37GPG4 Overview

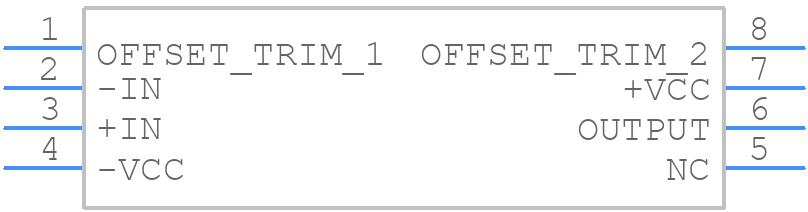

Use the download button to access the OPA37GPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA37,
or try a keyword search, such as Operational Amplifiers
