Texas Instruments recommends a star-ground layout, with the op-amp's ground pin connected to a central ground point, and the use of separate analog and digital grounds to minimize noise coupling. Additionally, keeping the input and output traces short and away from each other can help reduce noise and oscillations.
The output capacitor value depends on the specific application and the desired stability margin. A general rule of thumb is to choose a capacitor value between 10nF to 100nF, with a higher value providing more stability but also increasing the settling time. TI recommends using a capacitor with an ESR (Equivalent Series Resistance) of less than 5 ohms to ensure stability.
The maximum power dissipation of the OPA37GUE4 is 670mW. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Make sure to derate the power dissipation based on the ambient temperature and the package thermal resistance.
Yes, the OPA37GUE4 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the source, and the output impedance is low enough to drive the load. Additionally, consider the op-amp's bandwidth and slew rate to ensure that it can handle the desired frequency range and signal amplitude.
To minimize EMI and RFI, use proper shielding, grounding, and layout techniques. Keep the op-amp and its associated components away from noise sources, and use ferrite beads or chokes to filter out high-frequency noise. Additionally, consider using a shielded enclosure and applying EMI-absorbing materials to the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA37GUE4 Overview

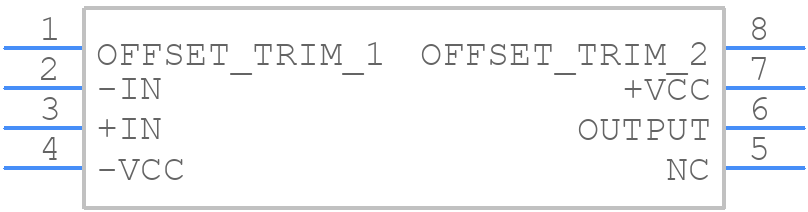

Use the download button to access the OPA37GUE4 schematic symbol, PCB footprint, and 3D model.
