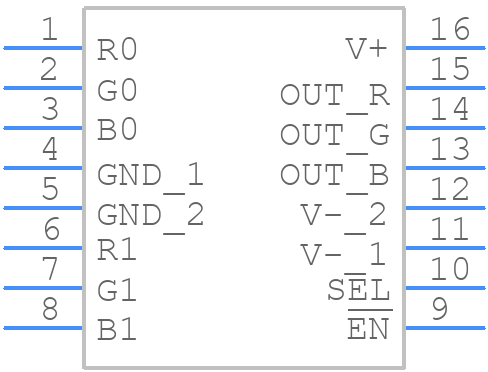

OPA3875IDBQR - Texas Instruments

OPA3875IDBQR Details

• Manufacturer Part Number:

  OPA3875IDBQR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Pin Count:

  16

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  VIDEO MULTIPLEXER

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  4.9 mm

• Moisture Sensitivity Level:

  2

• Neg Supply Voltage-Max (Vsup):

  -6.3 V

• Neg Supply Voltage-Min (Vsup):

  -3 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Normal Position:

  NO/NC

• Number of Channels:

  3

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  60 dB

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Current-Max (Isup):

  36 mA

• Supply Voltage-Max (Vsup):

  5 V

• Supply Voltage-Min (Vsup):

  5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
