OPA404AG - Texas Instruments

Description: Precision Amplifiers Quad High Speed Precision Difet

Download OPA404AG Model

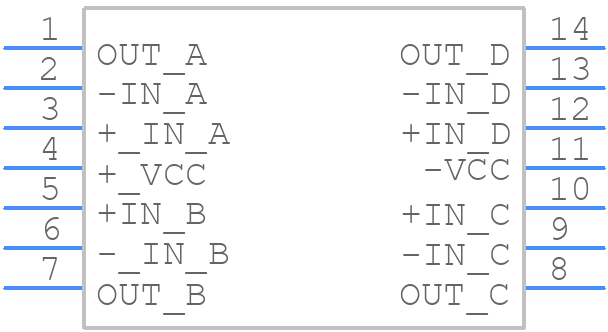

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

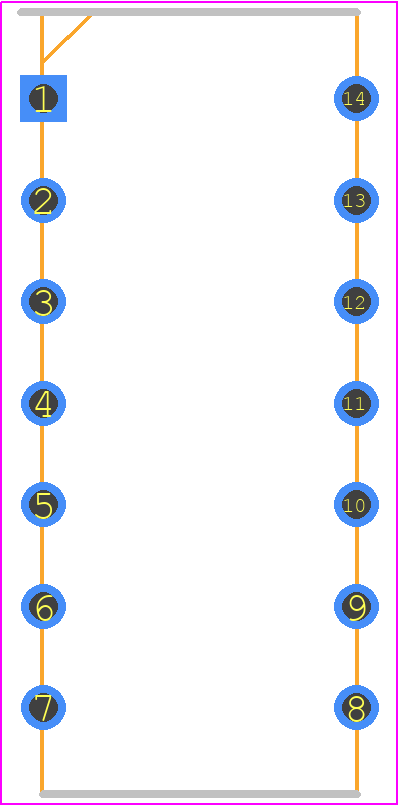

OPA404AG - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - JD (R-GDIP-T14)
click to zoom

OPA404AG Details

  • Manufacturer Part Number:

    OPA404AG

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    1994-01-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Bias Current-Max (IIB) @25C:

    0.000008 µA

  • Common-mode Reject Ratio-Min:

    88 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0001 µA

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    R-CDIP-T14

  • Length:

    18.545 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Slew Rate-Min:

    24 V/us

  • Slew Rate-Nom:

    35 V/us

  • Supply Current-Max:

    42 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    6400

  • Voltage Gain-Min:

    13000

  • Wideband:

    NO

  • Width:

    7.62 mm

OPA404AG Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the OPA404AG datasheet, but it's also important to follow general best practices for op-amp layout, such as keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device.
  • The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements of your application. A good starting point is to use the gain resistor values recommended in the datasheet, and then adjust them based on your specific requirements. It's also important to consider the resistor's tolerance, temperature coefficient, and parasitic capacitance.
  • The maximum power dissipation of OPA404AG is limited by the device's thermal characteristics and the ambient temperature. The power dissipation can be calculated using the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. The maximum power dissipation can be found in the datasheet, and it's typically around 1.4W for the OPA404AG.
  • To protect the OPA404AG from overvoltage and ESD, it's recommended to use voltage clamps, such as TVS diodes or zener diodes, on the input and output pins. Additionally, using a series resistor and a capacitor on the input pins can help to limit the voltage and current during an ESD event. It's also important to follow proper handling and storage procedures to prevent ESD damage.
  • The main difference between the OPA404AG and the OPA404AQ is the operating temperature range. The OPA404AG is rated for industrial temperature range (-40°C to 85°C), while the OPA404AQ is rated for automotive temperature range (-40°C to 125°C). Choose the OPA404AG for general-purpose industrial applications, and the OPA404AQ for automotive or high-temperature applications.
