Texas Instruments recommends a star-ground layout, with the op-amp's ground pin connected to a central ground point, and the use of separate analog and digital ground planes to minimize noise coupling.
The output capacitor value depends on the specific application and load requirements. A general rule of thumb is to choose a capacitor with a value between 10nF to 100nF, and to ensure that the capacitor's ESR (Equivalent Series Resistance) is less than 1 ohm to prevent oscillations.
The maximum power dissipation of the OPA404KPG4 is dependent on the ambient temperature and the package type. For the KPG4 package, the maximum power dissipation is 1.4W at 25°C. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, the OPA404KPG4 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to prevent loading the source, and to consider the op-amp's input bias current and offset voltage, which can affect the output voltage.
To protect the OPA404KPG4 from input overvoltage conditions, use input clamping diodes or voltage-limiting resistors to prevent the input voltage from exceeding the maximum rated value. Additionally, consider using a voltage supervisor or reset IC to monitor the input voltage and reset the system if it exceeds the maximum rating.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
OPA404KPG4 Overview

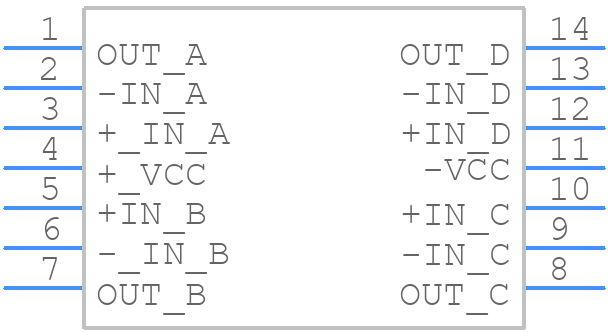

Use the download button to access the OPA404KPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA40,
or try a keyword search, such as Operational Amplifiers
