Texas Instruments recommends a layout that minimizes parasitic capacitance and inductance, with a solid ground plane, and keeping the input and output traces short and away from each other. A 4-layer PCB with a dedicated analog ground plane is recommended.
To ensure stability, it's essential to follow the recommended compensation network, and ensure that the gain resistor (Rg) is within the recommended range. Additionally, the input and output capacitors should be chosen to ensure that the phase margin is sufficient.
The maximum power dissipation of OPA4131UA/1K is 670mW. To calculate it, you need to consider the maximum output current, voltage, and package thermal resistance. Use the formula: Pd = (Vcc x Icc) + (Vout x Iout), and ensure that it's within the recommended limit.
Yes, OPA4131UA/1K is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures, and the maximum junction temperature should not exceed 150°C. Ensure that the device is properly heatsinked and follow the recommended thermal design guidelines.
To protect OPA4131UA/1K from EMI, use a shielded enclosure, and ensure that the PCB layout is designed to minimize radiation. Use bypass capacitors to filter out high-frequency noise, and consider using a common-mode choke or ferrite beads to filter out electromagnetic radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4131UA/1K Overview

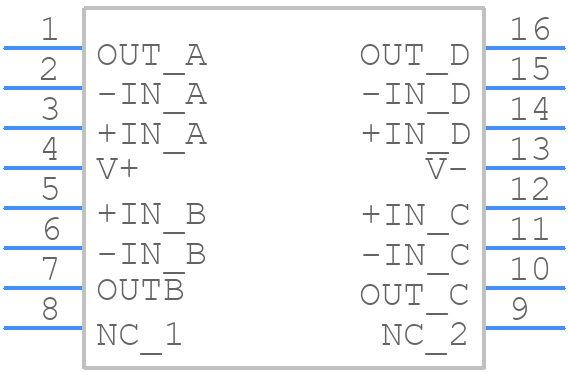

Use the download button to access the OPA4131UA/1K schematic symbol, PCB footprint, and 3D model.
