Texas Instruments provides a recommended PCB layout in the OPA4132UAG4 datasheet, which includes guidelines for component placement, trace routing, and grounding. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure optimal performance.
The choice of input and output capacitors depends on the specific application and operating frequency. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended for input and output decoupling. The capacitor values should be chosen based on the desired filter characteristics and noise rejection requirements.
The maximum power dissipation of OPA4132UAG4 is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance. The thermal resistance of the OPA4132UAG4 package is 52°C/W.
The OPA4132UAG4 is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the power dissipation and ensure proper heat sinking to maintain a safe operating temperature.
To protect OPA4132UAG4 from EMI, it is recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use filtering components such as ferrite beads or common-mode chokes. Additionally, proper PCB layout and grounding techniques can help reduce EMI susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4132UAG4 Overview

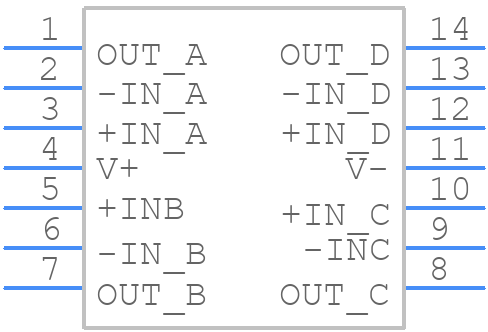

Use the download button to access the OPA4132UAG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA41,
or try a keyword search, such as Operational Amplifiers
