OPA4141AID - Texas Instruments

Description: Texas Instruments OPA4141AID, Quad JFET Op Amp, 10MHz Rail-Rail, 4.5 → 36 V, 14-Pin SOIC

Download OPA4141AID Model

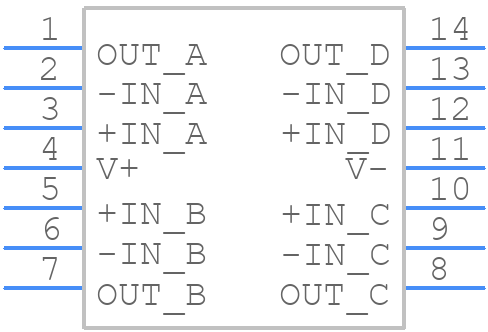

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA4141AID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G14)
click to zoom
3D Models
OPA4141AID - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G14)
click to zoom

OPA4141AID Details

  • Manufacturer Part Number:

    OPA4141AID

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bias Current-Max (IIB) @25C:

    0.00002 µA

  • Common-mode Reject Ratio-Min:

    120 dB

  • Common-mode Reject Ratio-Nom:

    126 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.001 µA

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -18 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    9.2 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    251000

  • Wideband:

    NO

  • Width:

    3.9 mm

OPA4141AID Frequently Asked Questions (FAQs)

  • A good PCB layout for OPA4141AID involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The choice of gain resistors depends on the desired gain and bandwidth. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the resistor noise and tolerance.
  • The maximum power dissipation of OPA4141AID is 670mW. However, this value can be limited by the thermal resistance of the package and the PCB. It's essential to ensure proper thermal management to prevent overheating.
  • OPA4141AID is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the temperature coefficient of the device and the application requirements.
  • To protect OPA4141AID from EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite beads on the input and output lines. Additionally, use a low-pass filter or a shielding material to reduce radiated emissions.
