OPA4187IDR - Texas Instruments

Description: 0.001-µV/°C Drift, low power, rail-to-rail Output, 36-V operational amplifiers zero-drift series

Download OPA4187IDR Model
Schematic

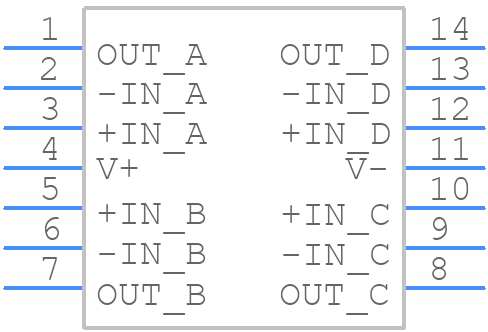

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA4187IDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
OPA4187IDR - Texas Instruments  - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

OPA4187IDR Details

  • Manufacturer Part Number:

    OPA4187IDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-11-28

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bias Current-Max (IIB) @25C:

    0.00035 µA

  • Common-mode Reject Ratio-Min:

    130 dB

  • Common-mode Reject Ratio-Nom:

    145 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0145 µA

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -18 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.2 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    0.58 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    550

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    3.9 mm

OPA4187IDR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
  • To ensure stability, it's recommended to use a compensation capacitor (Cc) between the output and the inverting input pins. The value of Cc depends on the gain and bandwidth requirements, but a typical value is around 10-22pF. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
  • The maximum power dissipation of OPA4187IDR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the operating temperature and the thermal resistance of the PCB.
  • Yes, OPA4187IDR is rated for operation up to 125°C. However, it's recommended to derate the power dissipation and ensure proper thermal management to prevent overheating. Additionally, it's recommended to consult the datasheet for the temperature-dependent characteristics and to perform thorough testing and validation for the specific application.
  • To protect OPA4187IDR from EMI, it's recommended to use a shielded enclosure, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise, and to use a low-pass filter or a shielding material to reduce radiated emissions.
