OPA4189IPWT - Texas Instruments

Description: Precision Amplifiers Quad 14-MHz MUX-fr iendly zero-drift OPA4189IPWR

Download OPA4189IPWT Model

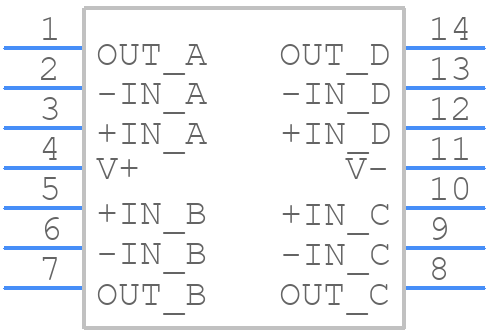

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA4189IPWT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0014A_2025
click to zoom
3D Models
OPA4189IPWT - Texas Instruments  - 3D model - Small Outline Packages - PW0014A_2025
click to zoom

OPA4189IPWT Details

  • Manufacturer Part Number:

    OPA4189IPWT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.015 µA

  • Bias Current-Max (IIB) @25C:

    0.0005 µA

  • Common-mode Reject Ratio-Min:

    146 dB

  • Common-mode Reject Ratio-Nom:

    168 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -18 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    7.2 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    14000

  • Voltage Gain-Min:

    10000000

  • Wideband:

    NO

  • Width:

    4.4 mm

OPA4189IPWT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the OPA4189 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane, and to keep the input and output traces short and away from each other.
  • To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, make sure to use a low-ESR capacitor for the power supply decoupling, and keep the feedback resistors and capacitors close to the op-amp pins. Also, avoid using long wires or traces for the feedback loop.
  • The maximum power dissipation of OPA4189IPWT is dependent on the ambient temperature and the package thermal resistance. The datasheet provides a formula to calculate the maximum power dissipation, which is Pd(max) = (TJ(max) - TA) / θJA, where TJ(max) is the maximum junction temperature, TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance.
  • The OPA4189IPWT is specified to operate up to 125°C, but the maximum junction temperature (TJ(max)) is 150°C. However, the device's performance and reliability may degrade at high temperatures, and the maximum power dissipation will decrease. It's essential to follow the recommended operating conditions and derate the power dissipation accordingly.
  • To protect OPA4189IPWT from EMI and RFI, use a shielded enclosure, and keep the op-amp and its components away from sources of electromagnetic radiation. Additionally, use a low-pass filter or a ferrite bead in the power supply lines, and consider using a common-mode choke or a shielded cable for the input and output signals.
