Description:• Low offset voltage: ±5 µV
• Low offset voltage drift: ±0.1 µV/°C
• Low noise: 15 nV/√ Hz at 1 kHz
• High common-mode rejection: 140 dB
• Low bias current: ±5 pA
• Rail-to-rail input and output
• Wide bandwidth: 2.5-MHz GBW
• High slew rate: 5 V/µs
• Low quiescent current: 140 µA per amplifier
• Wide supply: ±2.25 V to ±18 V, 4.5 V to 36 V
• EMI/RFI filtered inputs
• Differential input voltage range to supply rail
• High capacitive load drive capability: 1 nF
• Industry standard packages:
– S
Texas Instruments provides a recommended PCB layout in the OPA4191IPWR datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane and a separate analog ground plane to minimize noise and interference.
To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, TI recommends using a low-ESR capacitor (e.g., X7R or X5R) for the compensation capacitor and placing it close to the op-amp. Also, make sure to minimize parasitic capacitance and inductance in the circuit.
The maximum power dissipation of OPA4191IPWR is dependent on the ambient temperature and the package type. For the PW package, the maximum power dissipation is 1.4W at 25°C. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, OPA4191IPWR can operate in high-temperature environments, but there are limitations. The device is specified for operation from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. At higher temperatures, the device's performance and reliability may degrade. TI recommends derating the power dissipation and using thermal management techniques to ensure reliable operation.
To protect OPA4191IPWR from EMI and RFI, use proper shielding, grounding, and layout techniques. TI recommends using a shielded enclosure, placing the op-amp close to the analog ground plane, and using a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, use a low-pass filter or a pi-filter to attenuate high-frequency signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4191IPWR Overview

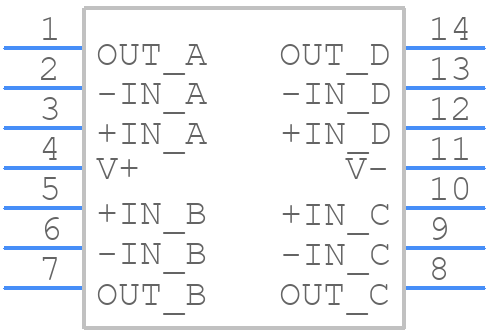

Use the download button to access the OPA4191IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA41,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
