OPA4202IDR - Texas Instruments

Description: Operational Amplifiers - Op Amps High capacitive drive (25nF), precision (200uV), low noise(9nV/rtHz), super beta quad op amp 14-SOIC -40 to 125

Download OPA4202IDR Model

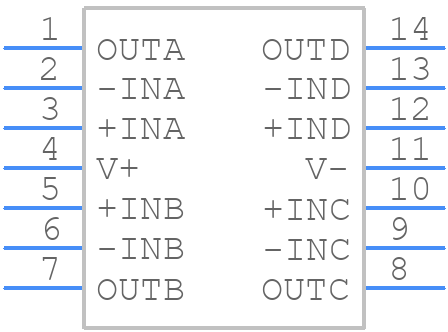

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA4202IDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)_1
click to zoom
3D Models
OPA4202IDR - Texas Instruments  - 3D model - Small Outline Packages - D (-R-PDSO-G14)_1
click to zoom

OPA4202IDR Details

  • Manufacturer Part Number:

    OPA4202IDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-10-24

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.002 µA

  • Bias Current-Max (IIB) @25C:

    0.002 µA

  • Common-mode Reject Ratio-Min:

    126 dB

  • Common-mode Reject Ratio-Nom:

    148 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00025 µA

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.6525 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -18 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.35 V/us

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    891250.9381

  • Wideband:

    NO

  • Width:

    3.9 mm

OPA4202IDR Frequently Asked Questions (FAQs)

  • A good PCB layout for OPA4202IDR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. A good starting point is to use the gain resistor values recommended in the datasheet. For custom gains, use the gain equation provided in the datasheet and consider the trade-offs between gain, bandwidth, and noise.
  • The maximum power dissipation of OPA4202IDR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated based on the actual operating conditions.
  • Yes, OPA4202IDR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure that the device is properly heat-sinked and follow the recommended thermal design guidelines to minimize thermal-related issues.
  • To troubleshoot oscillations or instability issues, check the PCB layout for parasitic capacitance and inductance, ensure proper decoupling, and verify that the gain resistors are correctly chosen. Also, check for signal integrity issues, such as ringing or reflections, and ensure that the device is properly bypassed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OPA4202IDR Overview

Use the download button to access the OPA4202IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA42, or try a keyword search, such as Operational Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
