OPA4202IPWR - Texas Instruments

Description: Operational Amplifiers - Op Amps Low noise (0.2-uVPP, 9-nV/vHz), heavy capacitive drive (25-nF), super beta, precision op amp, quad

Download OPA4202IPWR Model
Schematic

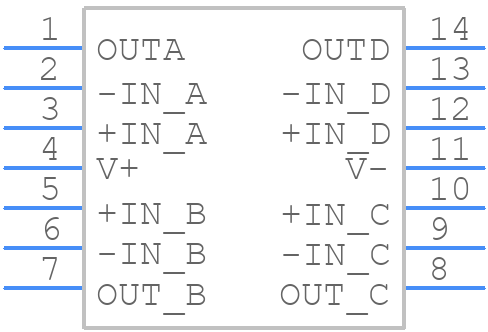

symbols
