A good PCB layout for OPA4277UAE4 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability, use a gain resistor (Rg) that is less than or equal to 1 kΩ, and a feedback capacitor (Cf) that is greater than or equal to 10 pF. Additionally, ensure that the output impedance of the previous stage is low enough to drive the input of the OPA4277UAE4.
The maximum power dissipation of OPA4277UAE4 is 1.4 W. However, this can be limited by the thermal resistance of the package and the ambient temperature. It's essential to calculate the power dissipation and ensure it's within the safe operating area.
Yes, OPA4277UAE4 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C. Ensure proper thermal management and consider derating the device's performance at high temperatures.
To protect OPA4277UAE4 from EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite beads on the input and output lines. Additionally, ensure good PCB layout practices, such as keeping the analog and digital grounds separate.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4277UAE4 Overview

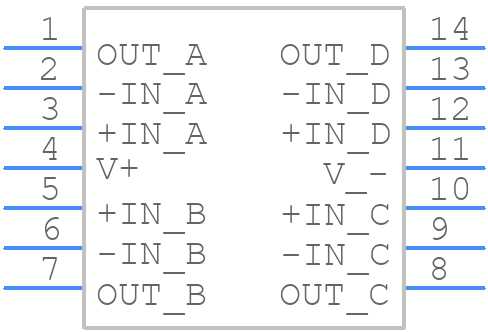

Use the download button to access the OPA4277UAE4 schematic symbol, PCB footprint, and 3D model.
