Texas Instruments provides a recommended PCB layout in the OPA4322 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane and a separate analog ground plane to minimize noise and interference.
To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, TI recommends using a low-ESR capacitor (e.g., X7R or X5R) for the compensation capacitor and placing it close to the OPA4322. It's also important to minimize parasitic capacitance and inductance in the circuit.
The maximum power dissipation of OPA4322SAIPW is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
The OPA4322SAIPW is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. TI recommends derating the power dissipation and output current at high temperatures to ensure reliable operation. Additionally, the device's offset voltage and input bias current may increase at high temperatures, which can affect the circuit's overall performance.
To protect OPA4322SAIPW from EMI and RFI, TI recommends using a shielded enclosure, keeping the circuit away from noise sources, and using a common-mode choke or ferrite bead on the input and output lines. Additionally, using a low-pass filter or a shielded cable can help reduce EMI and RFI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4322SAIPW Overview

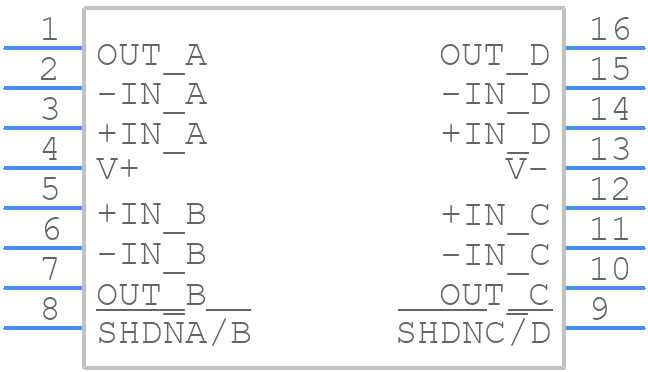

Use the download button to access the OPA4322SAIPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA43,
or try a keyword search, such as Operational Amplifiers
