Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and separate, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated analog ground plane is recommended.
To ensure stability, ensure that the circuit is properly compensated, and the gain and phase margins are sufficient. Use a compensation capacitor (Cc) between the output and the inverting input, and a series resistor (Rs) at the output to prevent oscillations. Also, minimize the distance between the op-amp and the feedback components.
The maximum power dissipation of OPA4340EA/2K5G4 is 670mW. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation is within the recommended limit to prevent overheating.
Yes, OPA4340EA/2K5G4 can operate in high-temperature environments, but with some limitations. The device is specified to operate up to 125°C, but the maximum junction temperature (Tj) should not exceed 150°C. At higher temperatures, the device's performance may degrade, and the reliability may be affected. Ensure that the device is properly heat-sinked and the operating conditions are within the recommended limits.
To protect OPA4340EA/2K5G4 from EMI and RFI, use a shielded enclosure, keep the input and output traces short and separate, and use a common-mode choke or ferrite bead at the input. Also, use a low-pass filter or a shielding material to absorb or block high-frequency radiation. Ensure that the PCB layout is designed to minimize radiation and susceptibility to EMI and RFI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4340EA/2K5G4 Overview

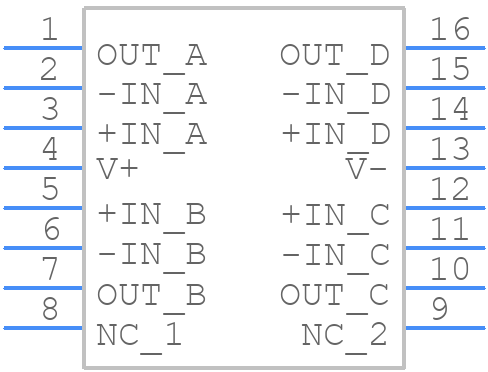

Use the download button to access the OPA4340EA/2K5G4 schematic symbol, PCB footprint, and 3D model.
