Texas Instruments provides a recommended PCB layout in the OPA4342UAG4 datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane and a separate analog ground plane to minimize noise and interference.
The OPA4342UAG4 has built-in ESD protection, but it's still important to follow proper handling and storage procedures to prevent damage. Use an anti-static wrist strap or mat when handling the device, and store it in an anti-static bag or container. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the PCB design.
The maximum power dissipation of OPA4342UAG4 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 500mW at 25°C ambient temperature. However, this value can be derated based on the thermal resistance of the PCB and the operating temperature range.
The OPA4342UAG4 is rated for operation from -40°C to 125°C, but its performance may degrade at high temperatures. TI recommends derating the device's power dissipation and ensuring proper heat sinking to prevent overheating. Additionally, consider using a thermally-enhanced package, such as the QFN package, for improved thermal performance.
To optimize the noise performance of OPA4342UAG4, use a low-noise power supply, minimize the input capacitance, and use a high-impedance input source. Additionally, consider using a noise-reducing technique, such as chopper stabilization or auto-zeroing, and ensure proper PCB layout and grounding to minimize noise coupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4342UAG4 Overview

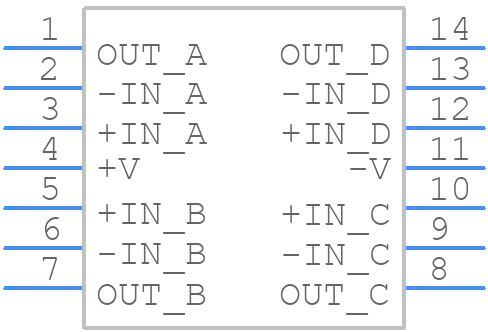

Use the download button to access the OPA4342UAG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA43,
or try a keyword search, such as Operational Amplifiers
