A good PCB layout for OPA4343NA/2K5 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. A 4-layer PCB with a dedicated analog ground layer is also recommended.
The choice of gain resistors depends on the desired gain, input impedance, and noise requirements. A good starting point is to use the gain resistor values recommended in the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the resistor tolerance and temperature coefficient.
The maximum power dissipation of OPA4343NA/2K5 is limited by the package thermal resistance and the ambient temperature. The datasheet specifies a maximum junction temperature of 150°C, and a thermal resistance of 128°C/W for the SOIC package. The maximum power dissipation can be calculated using these values and the ambient temperature.
OPA4343NA/2K5 is specified to operate from -40°C to 125°C, but the device performance may degrade at high temperatures. The datasheet provides temperature-dependent characteristics, and the user should carefully evaluate the device performance at the expected operating temperature. Additional heat sinking or cooling may be required for high-temperature applications.
To protect OPA4343NA/2K5 from EMI, use a shielded enclosure, keep the input and output traces short, and use a common-mode choke or ferrite bead on the input lines. Additionally, use a low-pass filter or a shielded cable to connect the input signal to the op-amp. The datasheet provides more information on EMI protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4343NA/2K5 Overview

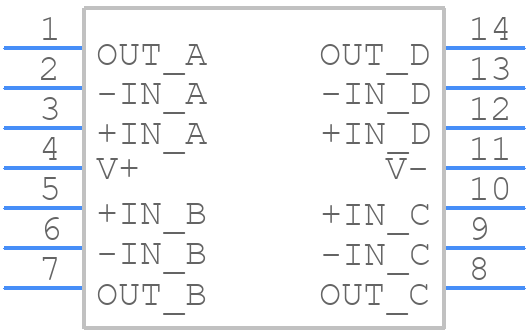

Use the download button to access the OPA4343NA/2K5 schematic symbol, PCB footprint, and 3D model.
