Texas Instruments provides a recommended PCB layout in the OPA4344PA datasheet, which includes keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a thermal pad on the bottom of the package to improve heat dissipation.
The choice of gain resistors depends on the desired gain, input impedance, and output impedance. Texas Instruments provides a gain resistor calculator tool on their website, which can help engineers select the optimal resistors for their specific application. Additionally, the datasheet provides a table of recommended gain resistors for common gains.
The maximum power dissipation of OPA4344PA is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a power dissipation calculation formula, which takes into account the supply voltage, output current, and thermal resistance. Engineers can use this formula to calculate the maximum power dissipation for their specific application.
OPA4344PA is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Engineers should consult the datasheet for temperature-related specifications, such as the maximum junction temperature and thermal resistance. Additionally, they should consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device within its recommended operating temperature range.
To protect OPA4344PA from EMI and RFI, engineers can use shielding, filtering, and grounding techniques. They should also keep the device away from sources of electromagnetic radiation, such as radio transmitters and high-voltage lines. Additionally, they can use EMI-filtering components, such as ferrite beads or common-mode chokes, to reduce electromagnetic noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4344PA Overview

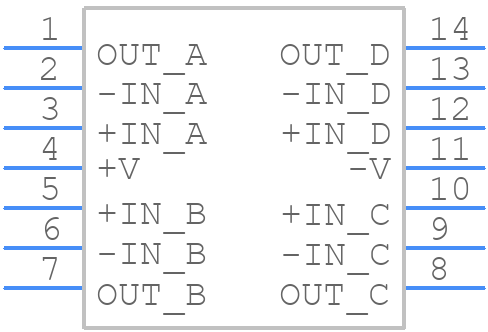

Use the download button to access the OPA4344PA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA43,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
