Texas Instruments provides a recommended PCB layout in the OPA4345UA datasheet, but it's also important to follow general guidelines for op-amp layout, such as keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins.
The choice of gain resistors depends on the desired gain, input impedance, and noise requirements. A good starting point is to use the gain resistor values recommended in the datasheet, and then adjust them based on your specific application. It's also important to consider the resistor tolerance and temperature coefficient.
The maximum power dissipation of OPA4345UA is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a power dissipation calculation formula, which takes into account the output current, supply voltage, and thermal resistance. It's important to ensure that the calculated power dissipation is within the recommended limits to avoid overheating and reliability issues.
Yes, OPA4345UA can be used as a unity-gain buffer, but it's important to ensure that the input impedance is high enough to avoid loading the input signal. Additionally, the output impedance of the op-amp should be considered, as it can affect the overall gain and stability of the circuit. It's also important to follow the recommended layout and decoupling guidelines to minimize noise and oscillations.
To protect OPA4345UA from ESD and overvoltage damage, it's recommended to use ESD protection diodes and overvoltage protection circuits, such as TVS diodes or zener diodes, on the input and output pins. Additionally, it's important to follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
OPA4345UA Overview

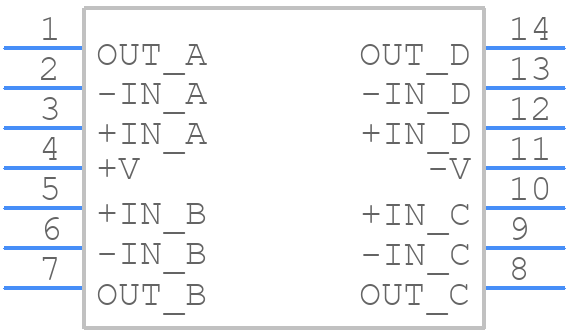

Use the download button to access the OPA4345UA schematic symbol, PCB footprint, and 3D model.
