Texas Instruments provides a recommended PCB layout in the OPA4348A datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI offers a PCB layout checklist and a layout guide for high-speed op-amps.
The output capacitor selection depends on the specific application requirements. TI recommends using a low-ESR capacitor (e.g., ceramic or film capacitor) with a value between 10nF to 100nF. The capacitor should be placed close to the output pin and connected to a low-impedance ground plane.
The maximum power dissipation for the OPA4348A is dependent on the package type and ambient temperature. For the PW package, the maximum power dissipation is 1.4W at 25°C. However, it's essential to calculate the power dissipation based on the specific application conditions and ensure the device operates within the recommended operating conditions.
Yes, the OPA4348A can be used as a unity-gain buffer. However, it's essential to ensure the input impedance is matched to the source impedance, and the output is properly terminated to prevent oscillations. Additionally, the device should be operated within the recommended operating conditions, and the output current should not exceed the maximum rated current.
To reduce noise and EMI, TI recommends using proper PCB layout techniques, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths. Additionally, using shielding, filtering, and decoupling capacitors can help reduce noise and EMI. It's also essential to follow proper grounding and bypassing techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4348AIPWRG4 Overview

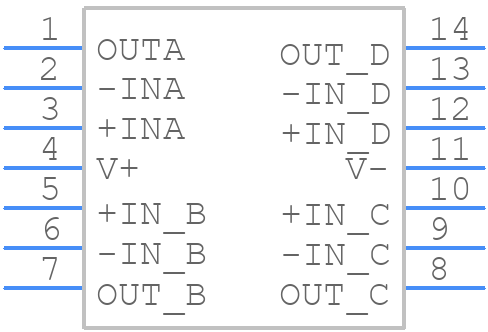

Use the download button to access the OPA4348AIPWRG4 schematic symbol, PCB footprint, and 3D model.
