Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and away from each other, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability, it's essential to follow the recommended compensation network and component values, and to avoid over-compensation. Additionally, the output impedance of the amplifier should be considered, and the gain should be set to a value that does not exceed the recommended maximum gain.
The maximum power dissipation of OPA4350EA/250G4 is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance of the package.
Yes, OPA4350EA/250G4 is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures, and the maximum power dissipation should be derated accordingly. It's essential to follow the recommended operating conditions and to ensure proper thermal management.
To protect OPA4350EA/250G4 from EMI, it's recommended to use a shielded enclosure, keep the input and output traces short and away from each other, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, the device's power supply should be well-regulated and decoupled to reduce noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4350EA/250G4 Overview

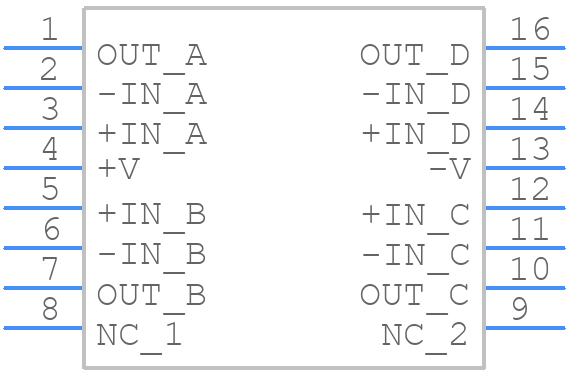

Use the download button to access the OPA4350EA/250G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA43,
or try a keyword search, such as Operational Amplifiers
