Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode filter capacitor between the inputs and a decoupling capacitor between the power supply pins and ground.
To ensure stability, it's recommended to use a compensation capacitor between the output and the inverting input, and to follow the gain configuration guidelines provided in the datasheet. Additionally, the user should ensure that the phase margin is sufficient by checking the loop gain and phase response using simulation tools or measurement equipment.
The maximum power dissipation of OPA4350UAG4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature, but this can be derated to 0.7W at 85°C ambient temperature. It's recommended to use a heat sink or to ensure good airflow to keep the device within the recommended operating temperature range.
Yes, OPA4350UAG4 can be used in a single-supply configuration, but the input common-mode range is limited to VCC-1.5V to VCC-0.5V. The user should ensure that the input signals are within this range to maintain optimal performance. Additionally, the output voltage swing may be limited in single-supply configurations, and the user should ensure that the output voltage is within the recommended range.
Texas Instruments recommends using ESD protection diodes and overvoltage protection circuits to protect OPA4350UAG4 from electrostatic discharge and overvoltage conditions. Additionally, the user should ensure that the input and output pins are not exposed to voltages beyond the recommended operating range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4350UAG4 Overview

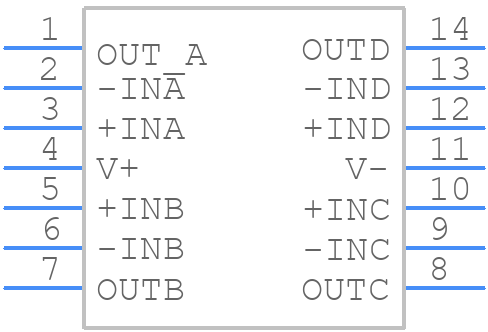

Use the download button to access the OPA4350UAG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA43,
or try a keyword search, such as Operational Amplifiers
