Texas Instruments provides a recommended PCB layout in the OPA4364A datasheet, which includes guidelines for component placement, trace routing, and grounding. Following this layout can help minimize noise, reduce parasitic capacitance, and ensure optimal performance.
The choice of input and output capacitors depends on the specific application and frequency range. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are suitable for most applications. The datasheet provides guidance on capacitor selection, and TI's Capacitor Selection Tool can also be used to find suitable capacitors.
The maximum power dissipation of OPA4364AIDRG4 is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a formula to calculate the maximum power dissipation, which is PDMAX = (TJMAX - TA) / θJA, where TJMAX is the maximum junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
OPA4364AIDRG4 is specified to operate from -40°C to 125°C, but the device's performance and reliability may degrade at high temperatures. TI recommends derating the device's power dissipation and voltage ratings at high temperatures, and ensuring that the device is properly heat-sinked to maintain a safe junction temperature.
To protect OPA4364AIDRG4 from EMI, TI recommends using proper shielding, grounding, and filtering techniques. This includes using a metal shield around the device, connecting the shield to a low-impedance ground, and using ferrite beads or common-mode chokes to filter out high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4364AIDRG4 Overview

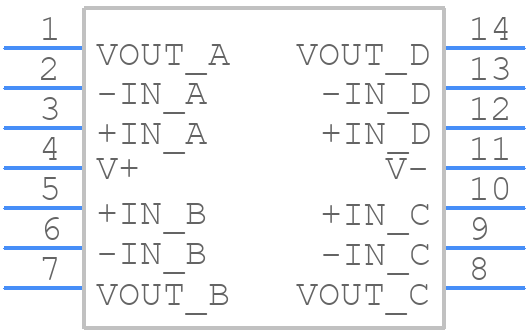

Use the download button to access the OPA4364AIDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA43,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
