Part Image

OPA4388ID - Texas Instruments

Description: Precision Amplifiers Quad, 10MHz, CMOS, zero-drift, zero-crossover, true RRIO precision operational amplifier 14-SOIC -40 to 125

Download OPA4388ID Model

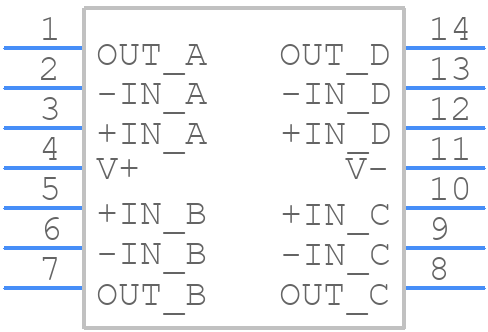

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA4388ID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
OPA4388ID - Texas Instruments  - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

OPA4388ID Details

  • Manufacturer Part Number:

    OPA4388ID

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-11-28

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0007 µA

  • Bias Current-Max (IIB) @25C:

    0.0005 µA

  • Common-mode Reject Ratio-Min:

    102 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    8 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -3 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    5 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    9.6 mA

  • Supply Voltage Limit-Max:

    3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    1995262

  • Wideband:

    NO

  • Width:

    3.9 mm

OPA4388ID Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, with short traces and a solid ground plane. A 4-layer PCB with a dedicated analog ground plane is recommended. See the TI application note 'AN-2025 PCB Layout for Op-Amps' for more details.
  • The OPA4388ID has internal ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded. Additionally, consider adding external ESD protection devices, such as TVS diodes, if the circuit will be exposed to high-voltage transients.
  • The maximum power dissipation for the OPA4388ID is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 1.4W at 25°C. However, this can be derated to 0.7W at 85°C. It's essential to perform thermal analysis and ensure proper heat sinking to prevent overheating.
  • The OPA4388ID is specified to operate from -40°C to 125°C. However, the device's performance may degrade at high temperatures, and the maximum power dissipation will decrease. It's essential to consult the datasheet and perform thermal analysis to ensure the device operates within its specifications in the target environment.
  • The output capacitor should be selected based on the desired closed-loop bandwidth and stability requirements. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF. However, it's recommended to consult the datasheet and perform stability analysis using tools like TI's SPICE models or the TINA-TI simulator to ensure the correct capacitor value for the specific application.
