A good PCB layout for OPA454AIDDAG4 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability, use a compensation capacitor (e.g., 10nF to 100nF) between the output and the inverting input. Also, ensure that the gain-setting resistors are of low impedance and that the feedback network is properly designed.
The maximum power dissipation of OPA454AIDDAG4 is 1.4W. However, this can be limited by the thermal resistance of the package and the PCB. Ensure proper thermal design and heat sinking to prevent overheating.
Yes, OPA454AIDDAG4 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures, and the maximum junction temperature should not exceed 150°C.
Use a shielded enclosure, keep the device away from high-frequency sources, and use EMI filters or common-mode chokes on the input and output lines. Also, ensure good PCB layout practices, such as using a solid ground plane and minimizing loop areas.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA454AIDDAG4 Overview

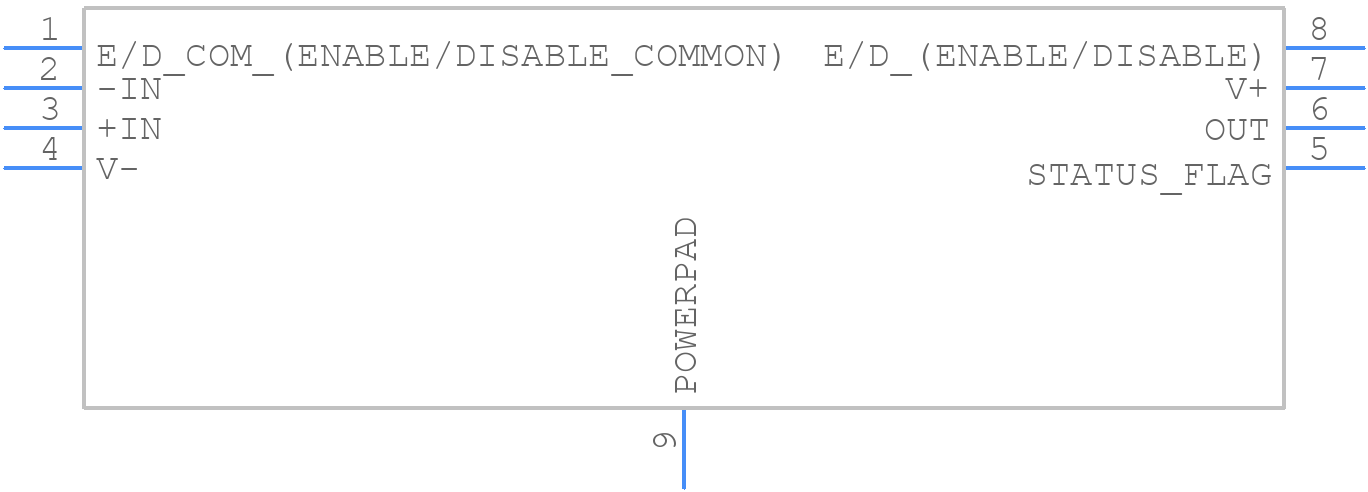

Use the download button to access the OPA454AIDDAG4 schematic symbol, PCB footprint, and 3D model.
