Texas Instruments provides a recommended PCB layout in the OPA4684ID datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and oscillations.
The choice of output filter depends on the specific application requirements, such as the desired frequency response, output impedance, and noise rejection. A simple RC filter or a more complex active filter can be used, and TI provides some guidance on filter design in the datasheet and application notes.
The maximum power dissipation of OPA4684ID is dependent on the package type and ambient temperature. The datasheet provides a power dissipation calculation formula, and it's essential to ensure good thermal design, such as using a heat sink or thermal pad, to keep the junction temperature below the maximum rating.
Yes, the OPA4684ID can be used as a unity-gain buffer, but it's essential to ensure that the input impedance is matched to the source impedance, and the output impedance is matched to the load impedance to avoid signal reflections and oscillations.
To troubleshoot oscillations or instability issues, check the PCB layout for any potential issues, such as poor grounding or decoupling, and ensure that the input and output impedances are properly matched. Also, check the power supply voltage and noise levels, and consider adding additional decoupling capacitors or filtering to reduce noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4684ID Overview

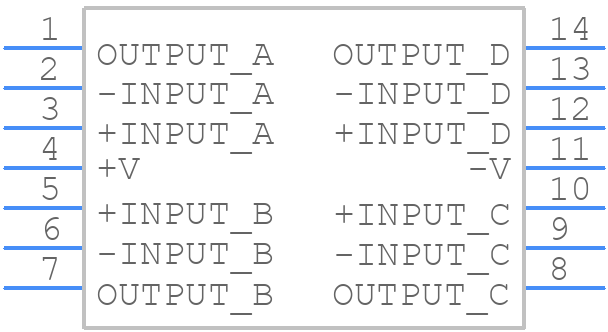

Use the download button to access the OPA4684ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA46,
or try a keyword search, such as Operational Amplifiers
