Texas Instruments provides a recommended PCB layout in the OPA4684 datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane to minimize noise and ensure optimal performance.
The choice of output filter depends on the specific application requirements. TI recommends using a 2nd-order Butterworth filter with a cutoff frequency of 100 kHz to 1 MHz to minimize noise and ensure stability. The filter components should be chosen based on the desired frequency response and impedance matching.
The maximum power dissipation of OPA4684IPWT is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4 W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the operating temperature and thermal resistance to ensure reliable operation.
Yes, OPA4684IPWT is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to consult the datasheet and application notes for guidance on high-temperature operation and to ensure that the device is properly derated for the specific application.
To ensure EMC with OPA4684IPWT, TI recommends following good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering as necessary. Additionally, the device's output should be filtered and decoupled to minimize electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4684IPWT Overview

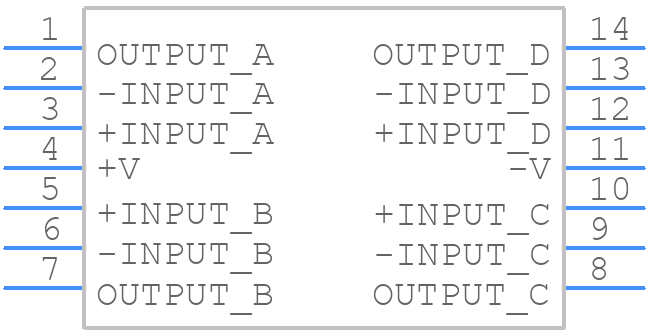

Use the download button to access the OPA4684IPWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA46,
or try a keyword search, such as Operational Amplifiers
