The maximum power dissipation of the OPA4820IPWR is 1.4W, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 90°C/W.
To ensure stability, it's recommended to use a compensation capacitor (CC) between the output and the inverting input pins. The value of CC depends on the gain and bandwidth requirements of the application. A good starting point is to use a 10pF to 22pF capacitor.
To minimize noise and ensure optimal performance, it's recommended to follow a star-ground layout, keep the input and output traces short and separate, and use a solid ground plane. Additionally, place the decoupling capacitors (e.g., 0.1uF and 10uF) as close to the power pins as possible.
Yes, the OPA4820IPWR can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V. To ensure proper operation, it's recommended to use a voltage divider or a voltage reference to set the input common-mode voltage.
The OPA4820IPWR has internal ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an anti-static bag or tube.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4820IPWR Overview

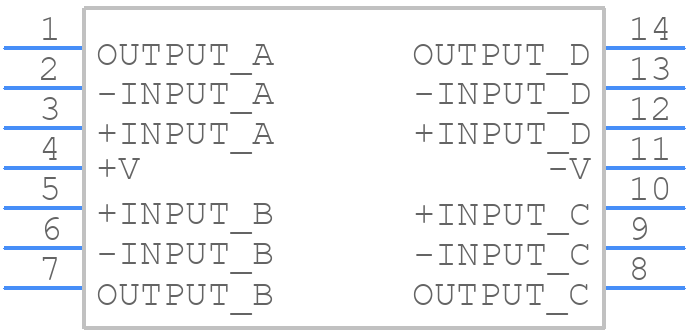

Use the download button to access the OPA4820IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA48,
or try a keyword search, such as Operational Amplifiers
