A good PCB layout for the OPA4872IDR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. Additionally, it's recommended to use a low-ESR capacitor for the bypass capacitor (e.g., 10nF to 100nF) and to place it as close as possible to the power pin.
To choose the correct gain resistors for your application, you need to consider the desired gain, bandwidth, and noise requirements. The OPA4872IDR datasheet provides a gain resistor selection table, but you can also use online calculators or simulation tools to determine the optimal resistor values. Additionally, consider using 1% or 0.1% tolerance resistors to minimize gain error and noise.
The maximum power dissipation of the OPA4872IDR is 1.4W, and it's essential to ensure the device doesn't overheat. To do this, calculate the power dissipation using the formula Pd = (Vcc x Icc) + (Vout x Iout), and ensure it's below the maximum rating. You can also use thermal design and simulation tools to estimate the junction temperature and ensure it's within the recommended operating range.
Yes, the OPA4872IDR can be used as a unity-gain buffer. However, you need to consider the input impedance, output impedance, and stability. The OPA4872IDR has a high input impedance, making it suitable for buffering high-impedance sources. Additionally, ensure the output impedance is low enough to drive the load, and consider adding a capacitor in parallel with the feedback resistor to improve stability.
To troubleshoot common issues in your OPA4872IDR-based circuit, start by checking the PCB layout, power supply, and component values. Use an oscilloscope to measure the input and output waveforms, and look for signs of oscillation, distortion, or noise. Check the datasheet for recommended operating conditions, and consider using simulation tools or online resources to help identify and fix the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4872IDR Overview

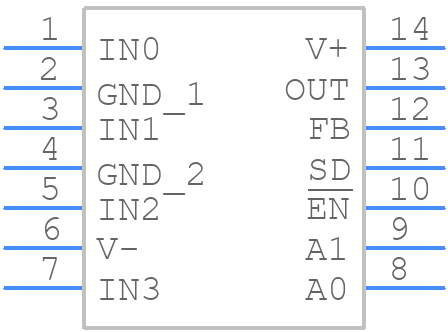

Use the download button to access the OPA4872IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA48,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
