A good PCB layout for the OPA547F involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The output capacitor should be chosen based on the desired closed-loop bandwidth and stability. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF. A larger capacitor value can improve stability but may reduce the bandwidth.
The maximum power dissipation of the OPA547F is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
Yes, the OPA547F can be used as a unity-gain buffer. However, it's essential to ensure that the input signal is within the common-mode range of the device and that the output is not overloaded. Additionally, the gain bandwidth product of the device should be considered to ensure stability.
To protect the OPA547F from overvoltage and ESD, it's recommended to use voltage clamps, such as TVS diodes, and ESD protection devices, such as ESD arrays, at the input and output pins. Additionally, following proper PCB design and layout practices, such as using a solid ground plane and minimizing trace lengths, can also help reduce the risk of damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA547F/500G3 Overview

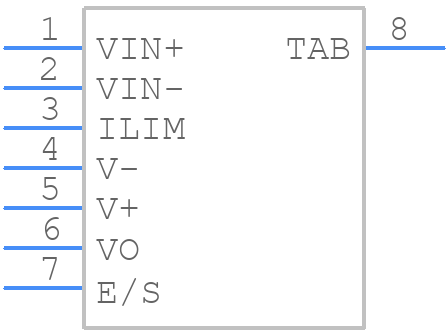

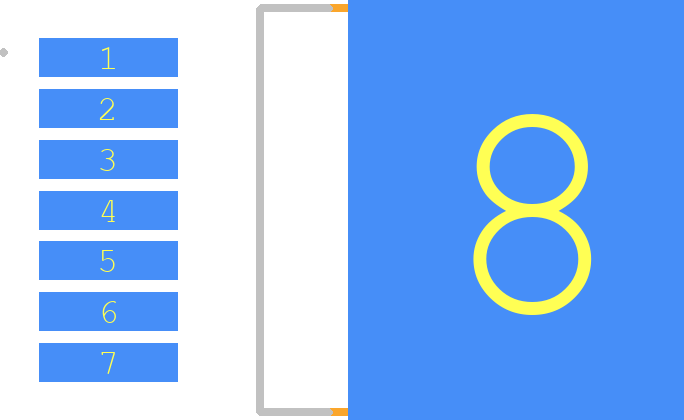

Use the download button to access the OPA547F/500G3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA54,
or try a keyword search, such as Operational Amplifiers
