OPA549SG3 - Texas Instruments

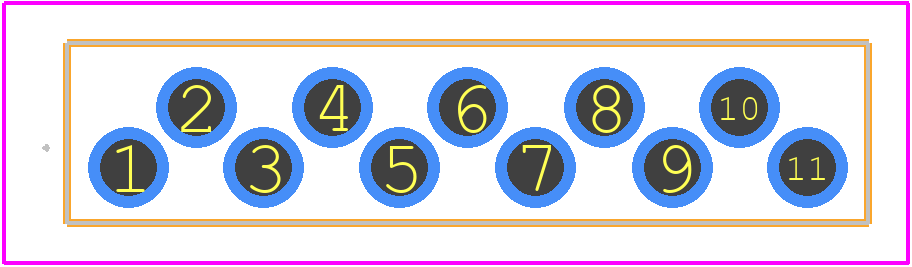

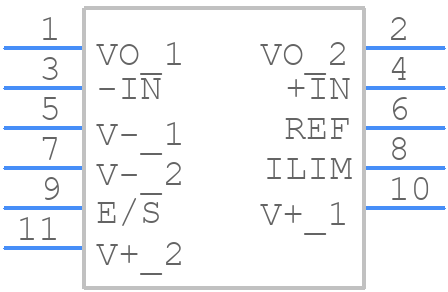

OPA549SG3 Details

• Manufacturer Part Number:

  OPA549SG3

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SFM

• Package Description:

  GREEN, PLASTIC, POWER PACK-11

• Pin Count:

  11

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.5 µA

• Bias Current-Max (IIB) @25C:

  0.5 µA

• Common-mode Reject Ratio-Min:

  80 dB

• Common-mode Reject Ratio-Nom:

  95 dB

• Frequency Compensation:

  YES

• Input Offset Current-Max (IIO):

  0.05 µA

• Input Offset Voltage-Max:

  5000 µV

• JESD-30 Code:

  R-PSFM-T11

• JESD-609 Code:

  e3

• Length:

  20.02 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Neg Supply Voltage Limit-Max:

  -30 V

• Neg Supply Voltage-Nom (Vsup):

  -30 V

• Number of Functions:

  1

• Number of Terminals:

  11

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  ZFM

• Package Equivalence Code:

  SIP11,.1TB

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Packing Method:

  TUBE

• Power:

  YES

• Programmable Power:

  YES

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.62 mm

• Slew Rate-Nom:

  9 V/us

• Subcategory:

  Operational Amplifier

• Supply Current-Max:

  35 mA

• Supply Voltage Limit-Max:

  30 V

• Supply Voltage-Nom (Vsup):

  30 V

• Surface Mount:

  NO

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.7 mm

• Terminal Position:

  SINGLE

• Unity Gain BW-Nom:

  900

• Voltage Gain-Min:

  100000

• Wideband:

  NO

• Width:

  10.7 mm
