Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and separate, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated ground plane is recommended.
The output capacitor should be chosen based on the desired closed-loop bandwidth, output impedance, and stability requirements. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum output voltage of the op-amp. X7R or X5R ceramic capacitors are recommended.
The maximum power dissipation of OPA602AUE4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C, but this can be derated to 0.7W at 85°C. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
Yes, OPA602AUE4 is rated for operation from -40°C to 125°C, making it suitable for high-temperature applications. However, the device's performance and reliability may degrade at extreme temperatures, and the maximum power dissipation should be derated accordingly.
To protect OPA602AUE4 from EMI, use a shielded enclosure, keep the input and output traces short and separate, and use a common-mode choke or ferrite bead on the input lines. Additionally, ensure that the PCB layout is designed to minimize radiated emissions and susceptibility to external interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA602AUE4 Overview

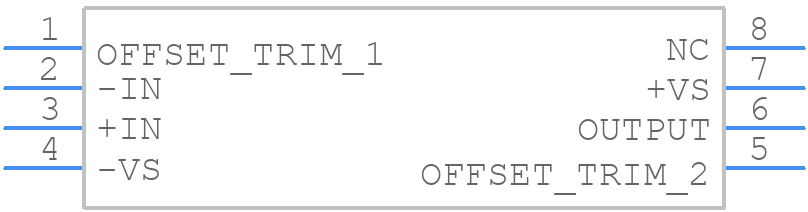

Use the download button to access the OPA602AUE4 schematic symbol, PCB footprint, and 3D model.
