Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and separate, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated analog ground plane is recommended.
To ensure stability, it's essential to follow the recommended compensation network and component values, and to maintain a minimum gain of 5V/V. Additionally, the output impedance of the source should be low enough to prevent oscillations, and the feedback network should be designed to provide sufficient phase margin.
The maximum power dissipation of OPA604AUE4 is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance. The recommended maximum power dissipation is 1.4W.
Yes, OPA604AUE4 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and to ensure proper thermal management to prevent overheating.
To protect OPA604AUE4 from EMI, use a shielded enclosure, keep the input and output traces short and separate, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, ensure that the PCB layout is designed to minimize radiation and susceptibility to EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA604AUE4 Overview

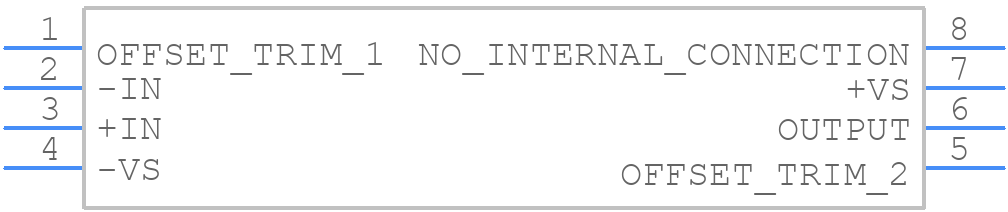

Use the download button to access the OPA604AUE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA60,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
