OPA633KP - Texas Instruments

Description: OPA633KP, Video Buffer 8-Pin PDIP

Download OPA633KP Model

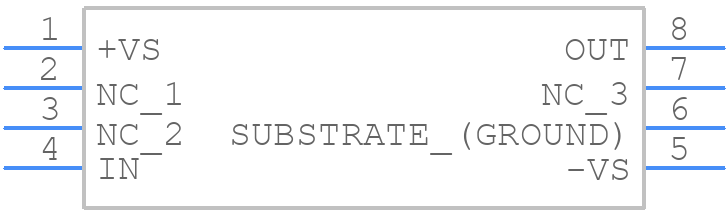

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA633KP - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
OPA633KP - Texas Instruments  - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

OPA633KP Details

  • Manufacturer Part Number:

    OPA633KP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    GREEN, PLASTIC, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    BUFFER

  • Average Bias Current-Max (IIB):

    50 µA

  • Bandwidth (3dB)-Nom:

    260 MHz

  • Bias Current-Max (IIB) @25C:

    35 µA

  • Input Offset Voltage-Max:

    25000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -12 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Min:

    0.08 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Slew Rate-Min:

    1000 V/us

  • Slew Rate-Nom:

    2500 V/us

  • Supply Current-Max:

    30 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

OPA633KP Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the OPA633KP is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
  • Yes, the OPA633KP is rated for operation from -40°C to 125°C, making it suitable for high-temperature applications. However, the maximum junction temperature (TJ) should not exceed 150°C.
  • To ensure stability, it's essential to follow proper compensation techniques, such as adding a capacitor in parallel with the feedback resistor or using a lag-lead compensation network. Additionally, the OPA633KP has a built-in compensation capacitor, which helps to improve stability.
  • To minimize noise and ensure optimal performance, it's recommended to use a star-grounding technique, where the analog and digital grounds are separated and connected at a single point. Additionally, keep the input and output traces short and away from noise sources.
  • While the OPA633KP can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate (2.5V/μs) and limited output current (±20mA). A dedicated comparator IC would be a better choice for most applications.
