Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, with a solid ground plane, and keeping the input and output traces short and away from each other. A 4-layer PCB with a dedicated analog ground plane is also recommended.
To ensure stability, it's essential to follow the recommended compensation network, and ensure that the gain resistor values are within the recommended range. Additionally, the input and output capacitors should be chosen to ensure that the phase margin is maintained above 45 degrees.
The maximum power dissipation of OPA642N/250 is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, OPA642N/250 is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures, and the maximum junction temperature should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to maintain reliable operation.
To protect OPA642N/250 from EMI, use a shielded enclosure, and ensure that the PCB layout is designed to minimize radiation. Additionally, use EMI filters, such as ferrite beads or common-mode chokes, on the input and output lines to reduce electromagnetic radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA642N/250 Overview

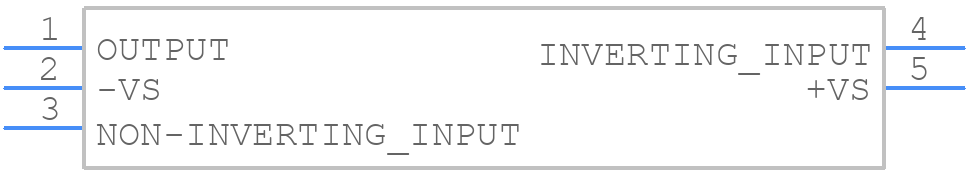

Use the download button to access the OPA642N/250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA64,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
