For optimal performance, it is recommended to follow good PCB design practices, such as keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power supply pins with 0.1uF and 10uF capacitors. Additionally, the datasheet provides a recommended layout diagram that can be used as a starting point.
The OPA642UB has a high input bias current, which can cause voltage drops across the input resistors. To mitigate this, use a low-impedance source, such as a voltage divider or a buffer amplifier, to drive the input pins. Additionally, consider using a current-limiting resistor in series with the input pins to prevent excessive current draw.
The OPA642UB can drive capacitive loads up to 100pF without oscillation. However, it is recommended to use a series resistor (Rs) to dampen the capacitive load and prevent oscillation. The value of Rs can be calculated using the formula Rs = 10 / (2 * pi * f * C), where f is the frequency of operation and C is the capacitive load.
To ensure stability and prevent oscillation, follow the recommended compensation capacitor values and placement, use a low-ESR capacitor for power supply decoupling, and avoid using long input traces or cables. Additionally, consider adding a small series resistor (Rs) to the output pin to dampen the output stage.
The OPA642UB can operate from a single supply voltage of 4.5V to 12V, or from a dual supply voltage of ±2.25V to ±6V. However, it is recommended to operate the device within the specified voltage range to ensure optimal performance and prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA642UB Overview

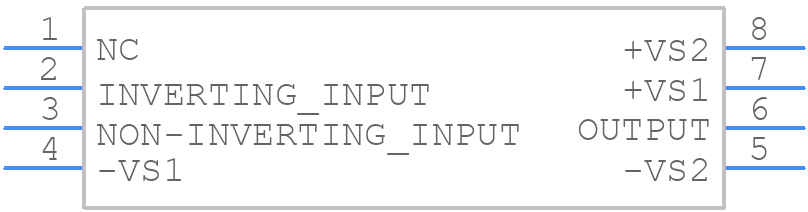

Use the download button to access the OPA642UB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA64,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
